Explorado is an exceptional Nordhavn 55, one of the few with a full hydraulics package. Here are her specs:
BRAND AND MODEL: NORDHAVN 55
TYPE: Long range passage maker with raised pilothouse and flybridge
MODEL YEAR: 2005
HULL NUMBER: 7
HULL MATERIAL: Solid Fiberglass
DISPLACEMENT: 124,500 lbs.| 56.47 MT
BALLAST: 8,500 lbs.| 3.86 MT
RANGE: 3,000 miles @ 8.0 knots
SPEED: Cruise 8.0, Top 9.7 knots
LOA: 61’0” | 18.59M
LWL: 50’1” | 15.27M
BEAM: 18’0” | 5.49M
DRAFT: Minimum 5’9” / 1.75M |Maximum 6’6” / 1.98M
D|L: 370
A|B: 2.47:1
AIR DRAFT: 37’0" | 11.28M to top of antennas
MAIN ENGINE: Lugger L1276A | 340 HP
TRANSMISSION Twin Disc MG5091SC 2.95:1 reduction gear
PROPELLER AND SHAFT Aquamet 22 shaft| Five blade propeller (42LH30) | Spurs line cutter | Mounts and cutlass bearing
EXHAUST: Dry stack, keel cooled
WING ENGINE: Lugger L984D 70 HP with V-drive and Gori propeller |Hydraulic PTO
MACHINERY EQUIPMENT: Oberdorfer oil change pump and manifold | Isolation transformer| Walbro fuel transfer pump and Racor on timer
THRUSTERS: ABT hydraulic 25 HP bow thruster and stern thruster
STABILIZATION: ABT TRAC 250 digital active fins - 9.5 square ft. | At anchor flopper stoppers port and starboard
ELECTRICAL: 60 Hertz – US style - 50-amp service for house and air conditioning | Glendinning Cablemaster shore cord retriever aft for 50 amp house | Olsun 7.5 kVA power transformer | Olsun 12kVA isolation transformer
GENERATOR: Northern Lights 20 kW M844LW2
INVERTER|CHARGER: Outback FX inverter/charger and Mate | Dolphin 100 amp battery charger | Nav com 12V charger
BATTERIES: Lifeline AGM batteries for house and starting | Engine start
WATER MAKER: Village Marine Series 800 (800 gallons a day) | Dedicated intake through hull and strainer
CLIMATE CONTROL: Cruisair Air Dometic air conditioning
WINDLASS: Maxwell 3500 hydraulic
GROUND TACKLE Rocna 54 KG anchor | 400' 1/2" high test chain| Secondary Fortress FX85
CRANE: Steelhead ES 1200 - 1,200 pound

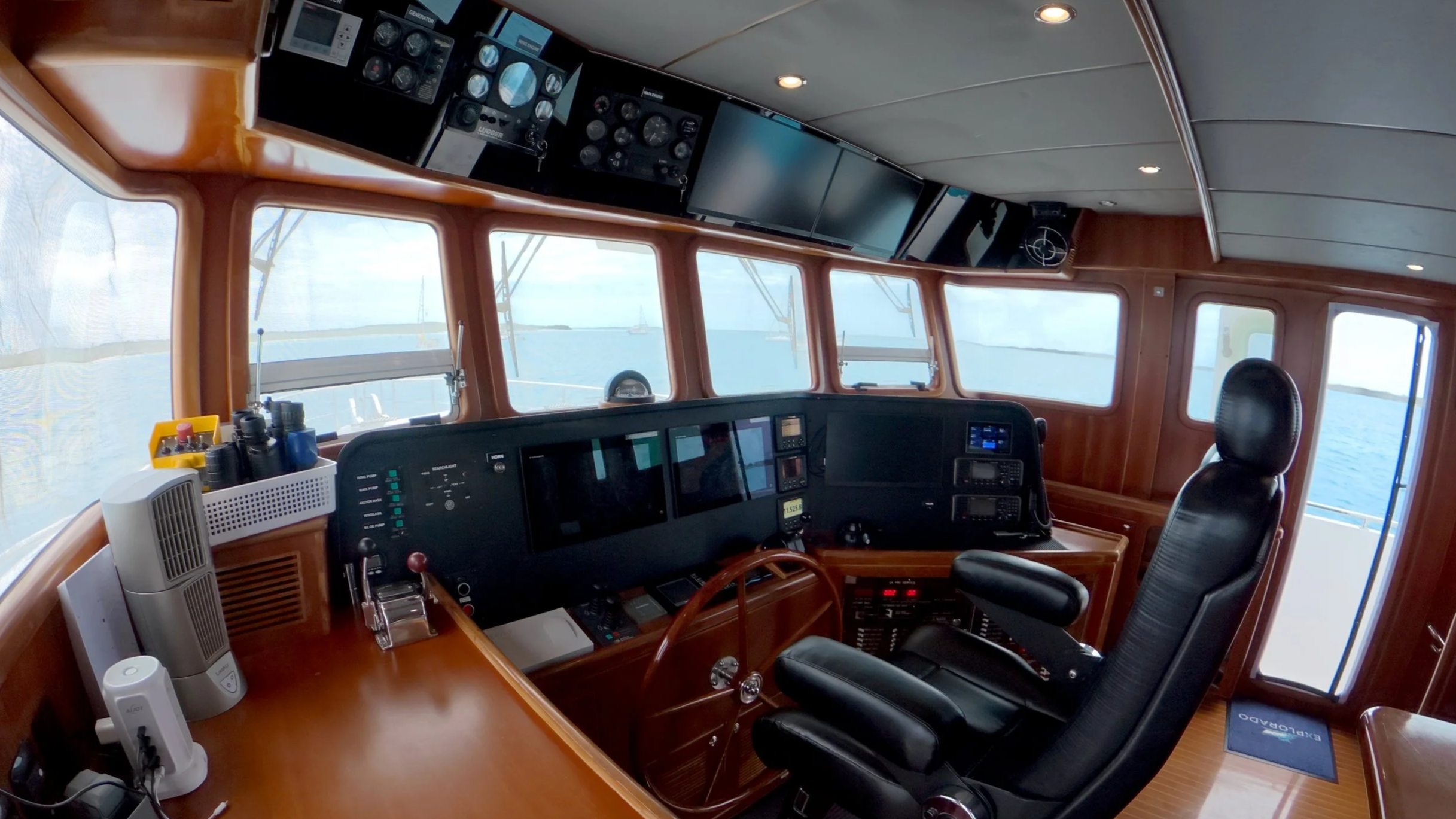

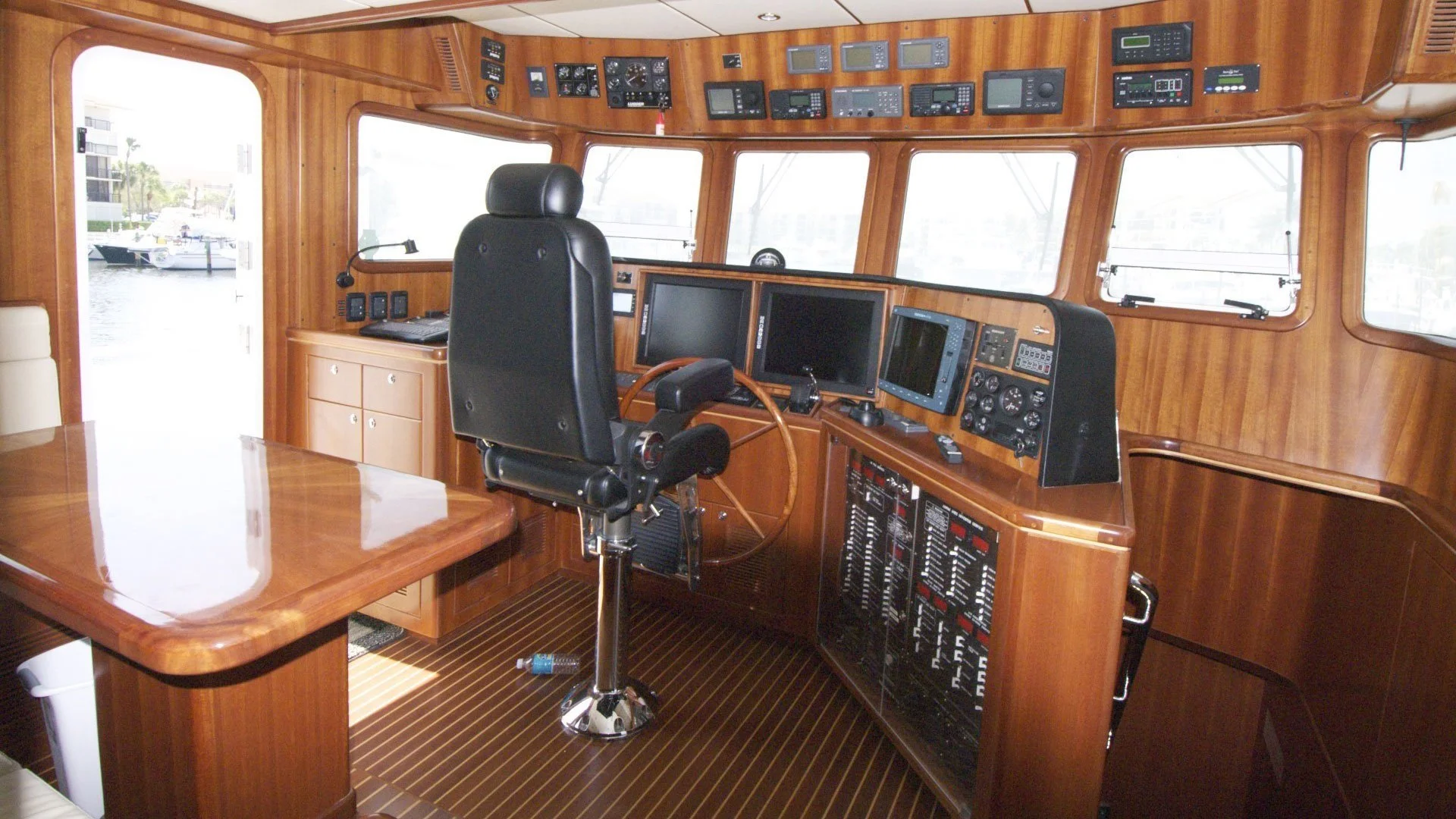

NAV|COM: Furuno radars, displays, pilot, plotter | Pilothouse Icom M605 VHFs | Simrad autopilot with Accusteer pump | Peplink WiFi| TZ Touch flybridge | Starlink | Iridium GO
ENTERTAINMENT: 48” LG Smart TV flat screen television saloon on lift | 37” Samsung Smart TV television owner | Sat TV dome| Surround sound Stereo | Starlink

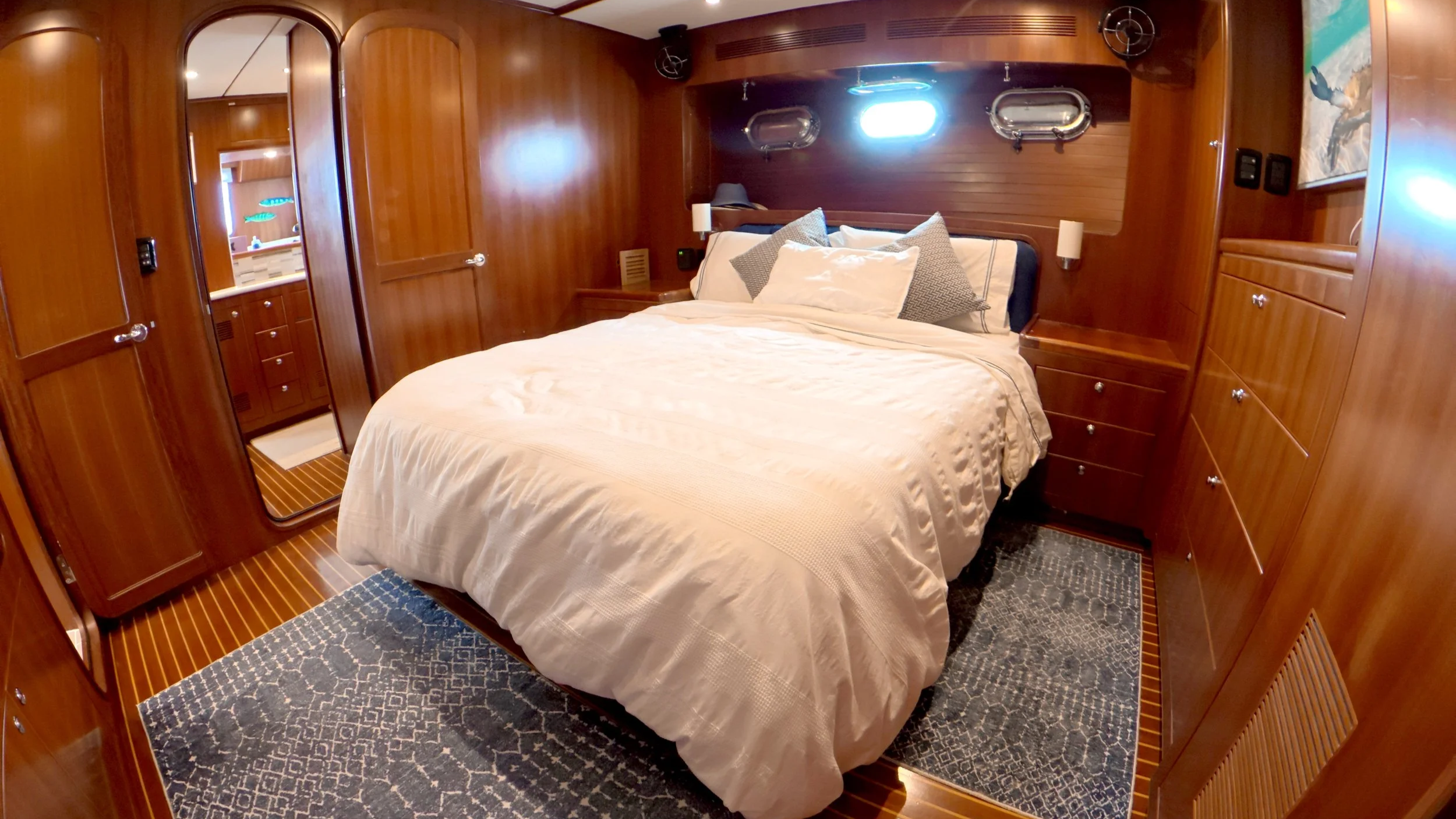

STATEROOMS:(3) Owner aft, Guest cabin forward, Captain's cabin aft of pilothouse
HEADS: (2) Raritan, (1) Tecma (owner)- all electric freshwater
SHOWERS: (3) Owner, Guest, Cockpit shower
LAUNDRY: Bosch separate clothes washer and clothes dryer

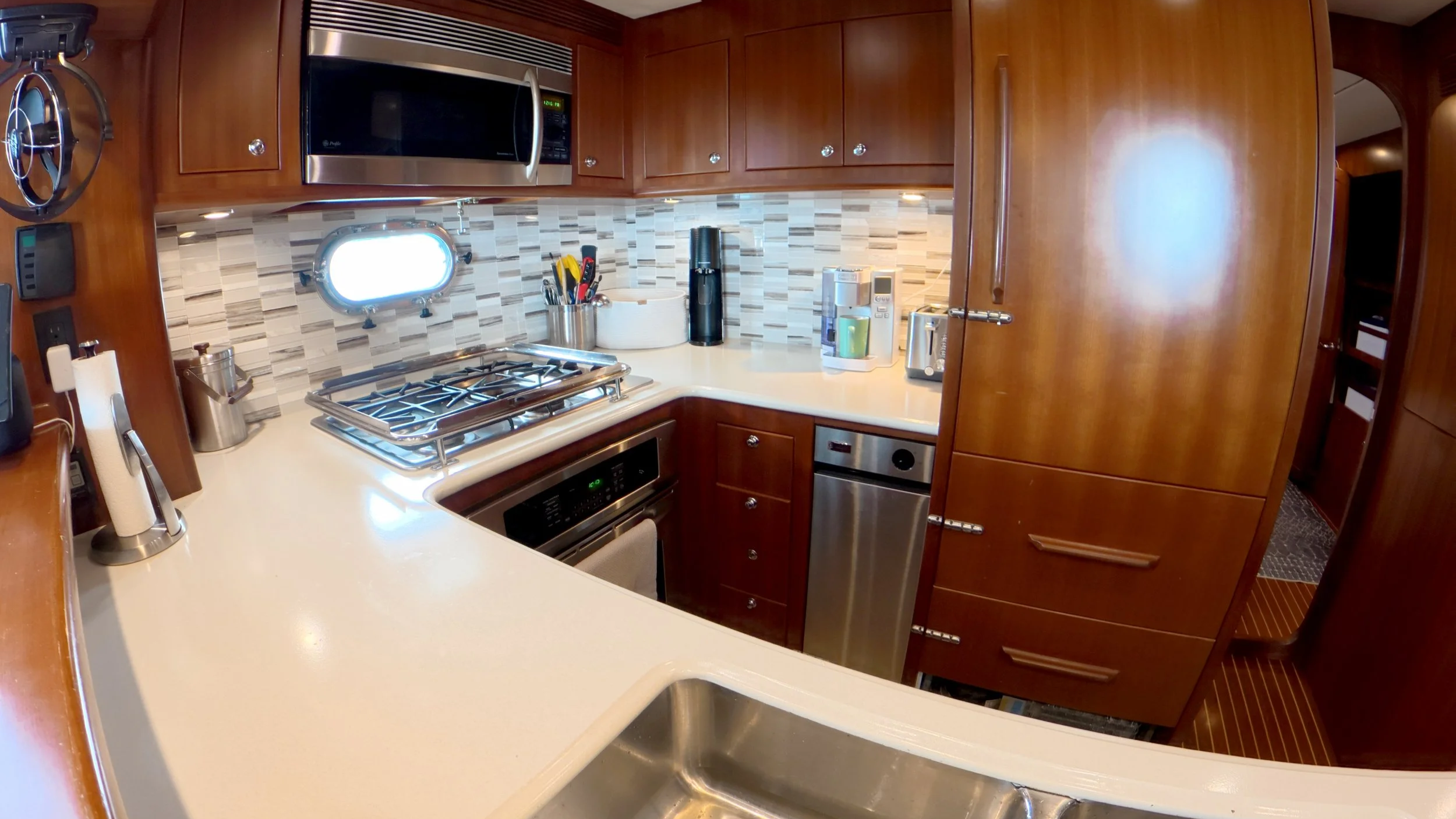

GALLEY: GE Profile propane stove and electric oven | GE Profile microwave convection oven | GE trash compactor | GE top load freezer in Utility room
REFRIGERATION|FREEZER: Sub Zero refrigerator with two freezer drawers | GE chest freezer in utility room
DECKS: Teak decks
INTERIOR WOOD: Cherry
INTERIOR COUNTERS: Granite counters
INTERIOR UPHOLSTERY: Ultraleather | fabric
INTERIOR FLOORING: Cherry and spruce
FUEL: 2,250 gallons | 8,517L (4 fiberglass, 2 aluminum)
HOLDING BLACK: 120 gallons | 454L
HOLDING GRAY: 110 gallons | 416L
FRESH WATER: 600 gallons | 2,271L
SAFETY: Sea Fire fire suppression engine room and lazarette | Viking (4) Person RescuYou Pro (expires 2025) | ACR EPIRB | High water bilge pump | Lifesling
